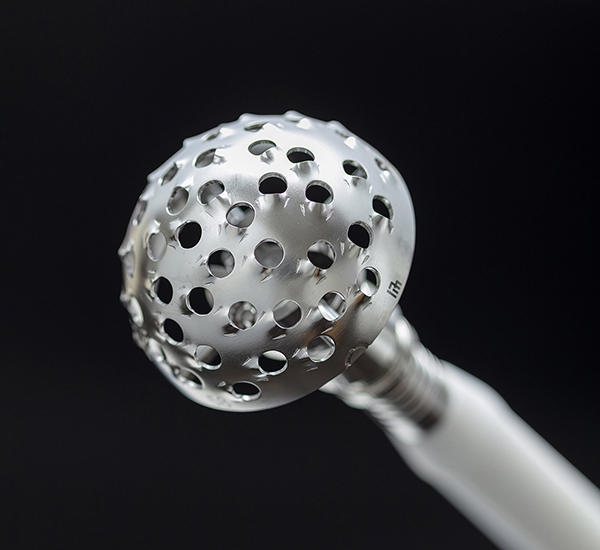

Unparalleled reaming speed / super-durability by uniquely allocated cutting edges.

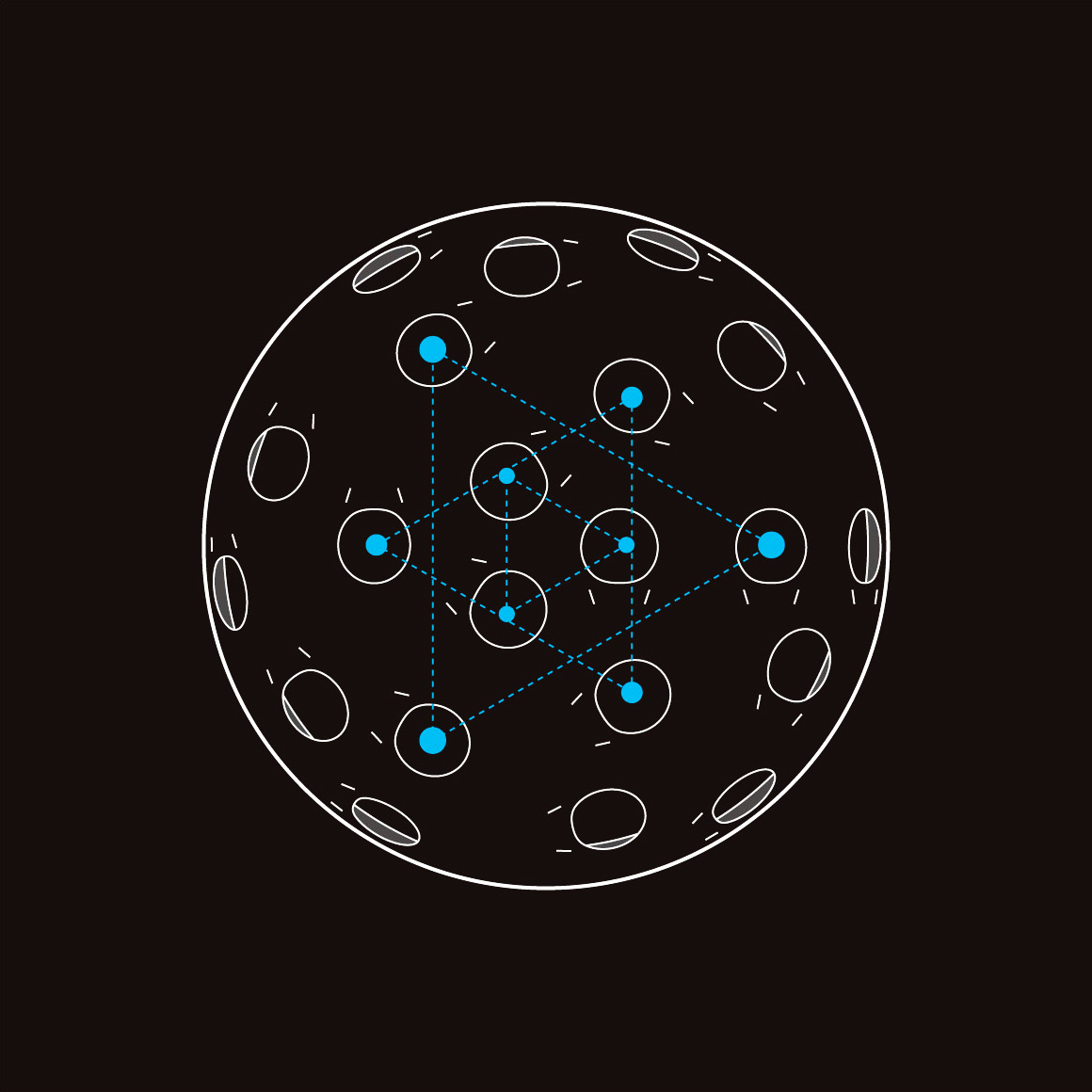

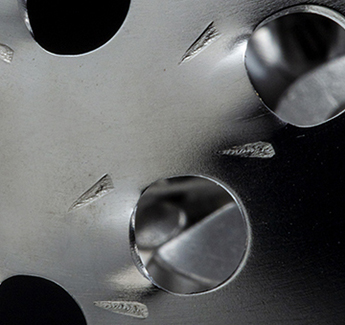

By allocating each 3 cutting edge on equilateral triangle positions on the same latitude, unparalleled smooth and stable reaming without center runout is possible and it makes reaming shape more accurate.

The triangle

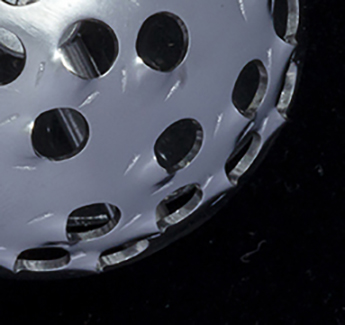

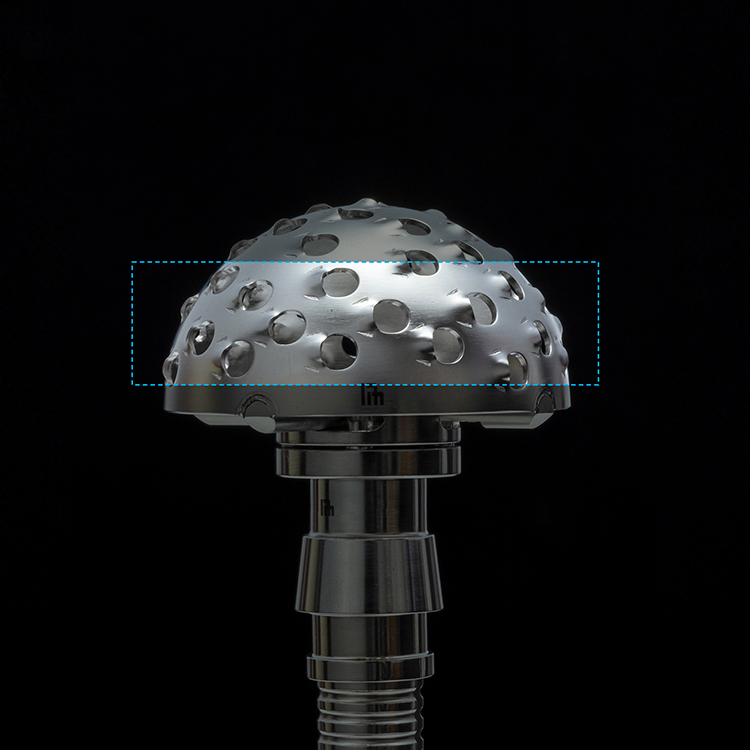

In general, more load occurs in cutting edges around the equatorial region during reaming.
By allocating more cutting edges in that region, such load is dissipated and the durability of cutting edges improves to the extent no other products ever realized.

The durability

Material: Polyurethane PROLAB75
Dimensions: 90 x 75 x 50 mm
Through hole diameter: Φ45 ±0.3mm

Specification

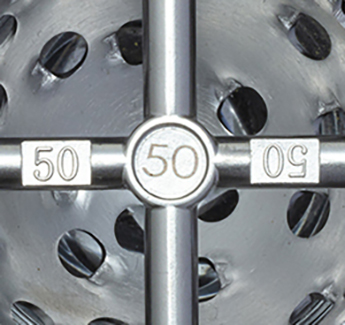

Reamer size: Dia. 38-65mmΦ (with 1mm increment)
Reamer material: Stainless Steel SUS420J2 (ISO 4028-420-00-I)

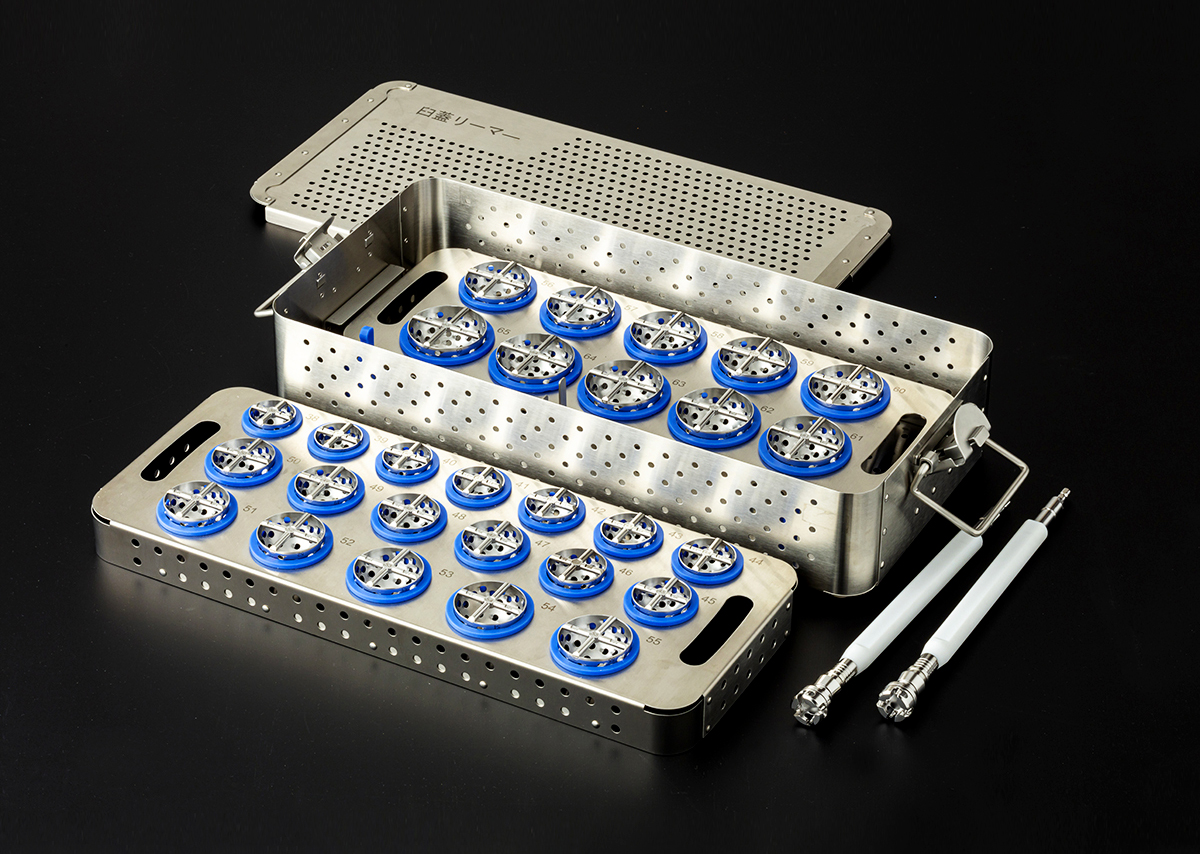

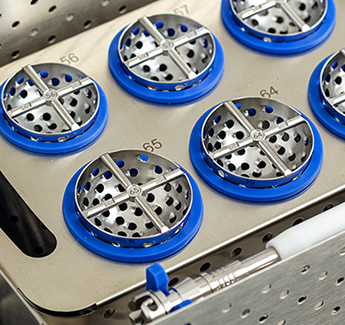

Accessories: Reamer Handle (2), Special Container

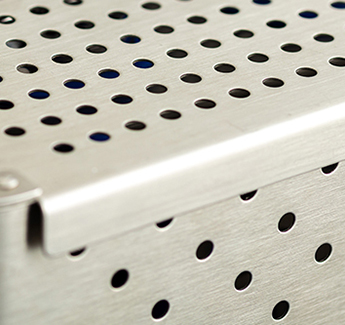

Container size: W490xD320xH65mm


Model Number
Dia. / Model number
38 - 65mm / MA02038 - MA02065

Specification / Model Number
